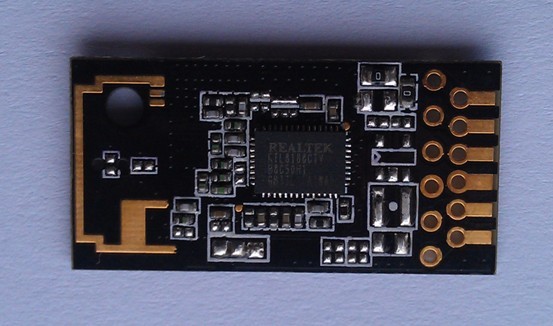

WLAN 11n USB module (1T1R)

UM02 is a WLAN 11n USB module, which fully supports the features and Functional compliance of IEEE 802.11n,e and i standards. It supports up to 150Mbps high-speed wireless network connections.

It is designed to provide excellent performance with low power

Consumption and enhance the advantages of robust system and cost-effective.

It is targeted at competitive superior performance, better power

Management applications.

Features

* REALTEK RIL8188 chipset

* Operates in 2.4 GHz frequency bands

* 1x1 MIMO technology improves effective throughput and range

existing 802.11 b/g products

* Data rates: up to 150Mbps

* 802.11e-compatible bursting and I standards

* BPSK, QPSK, 16 QAM, 64 QAM modulation schemes

* WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
